Douglas Fir Plywood
Visually Striking
Attractive & Decorative
Wild Grain Pattern
A speciality decorative panel

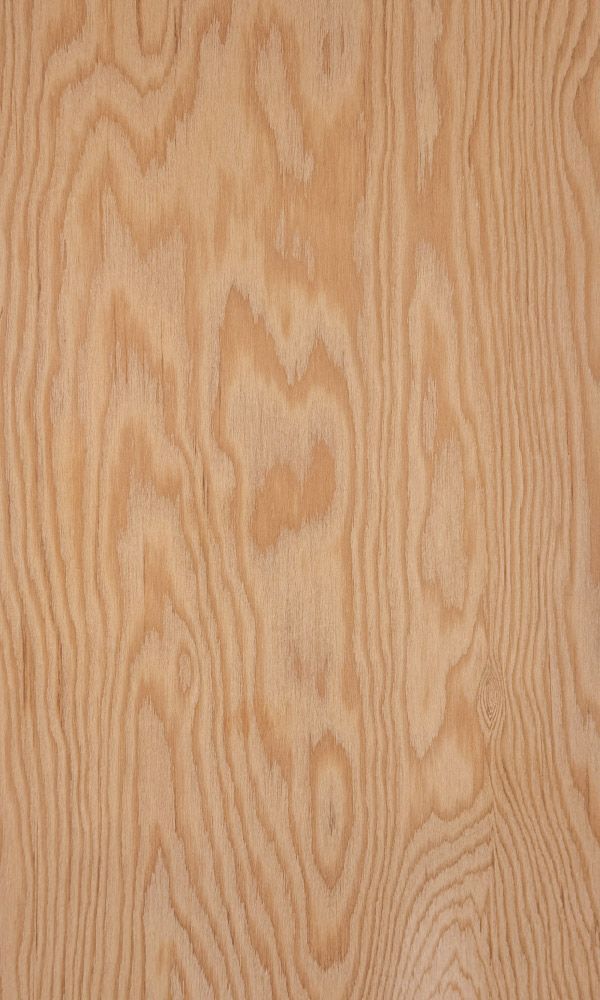

High grade rotary cut faces
One-piece face veneers
Popular with designers & architects

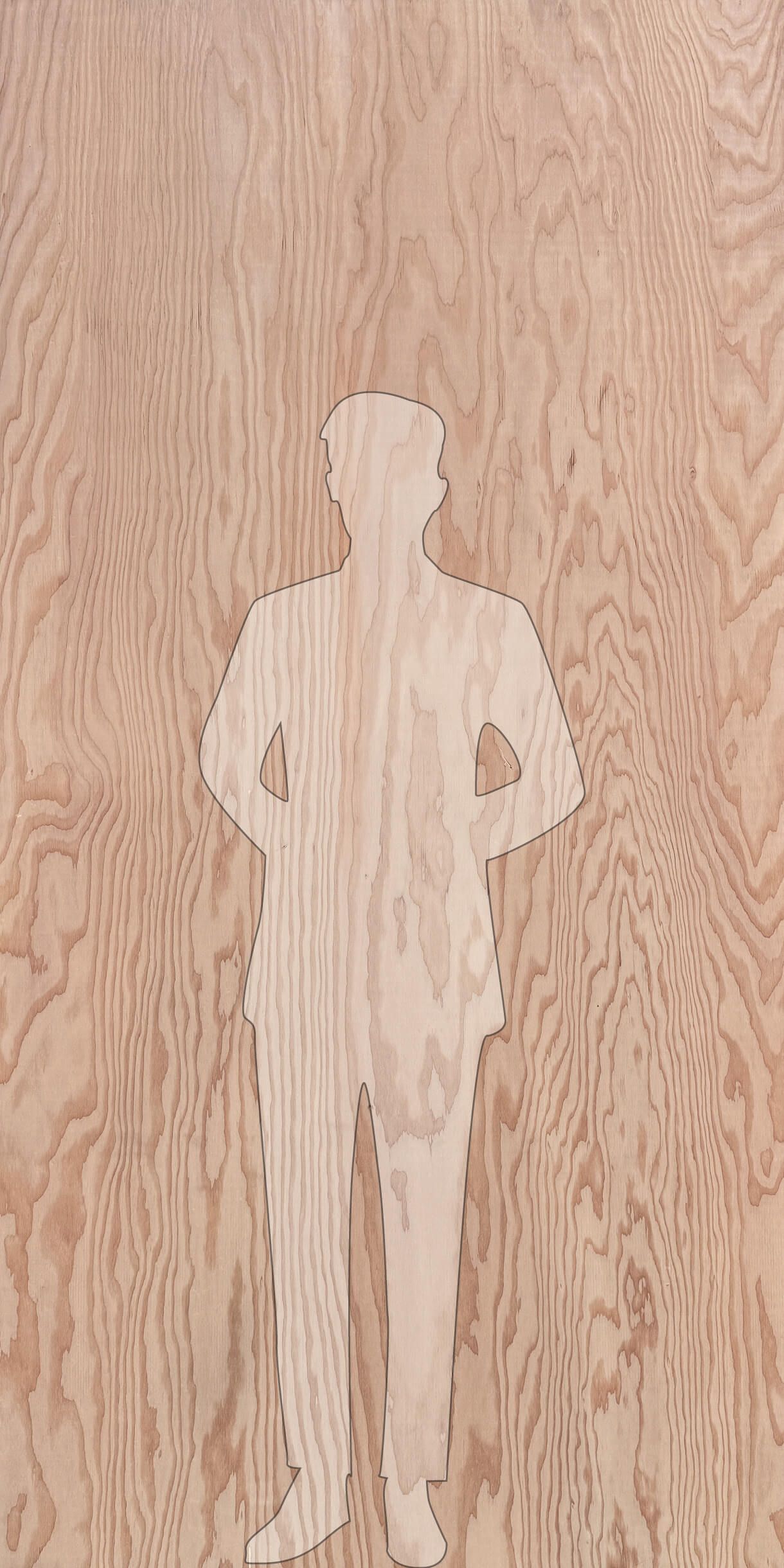

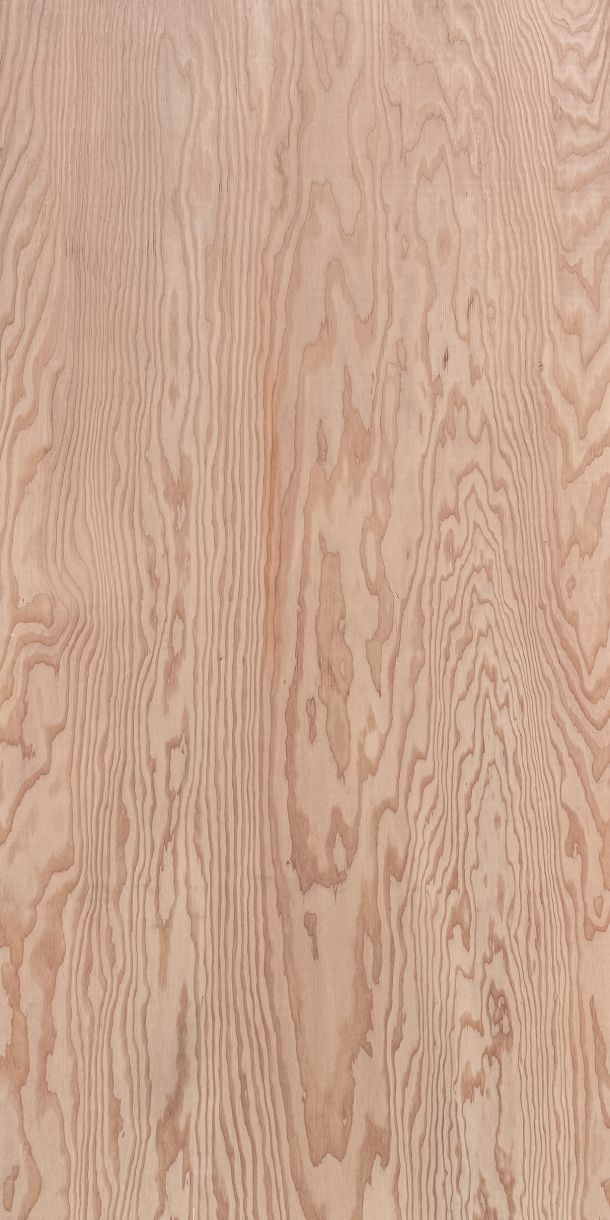

Examples of full size 8ft x 4ft panels

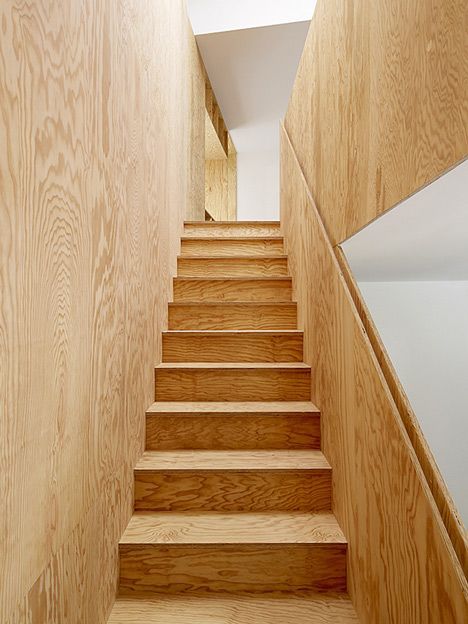

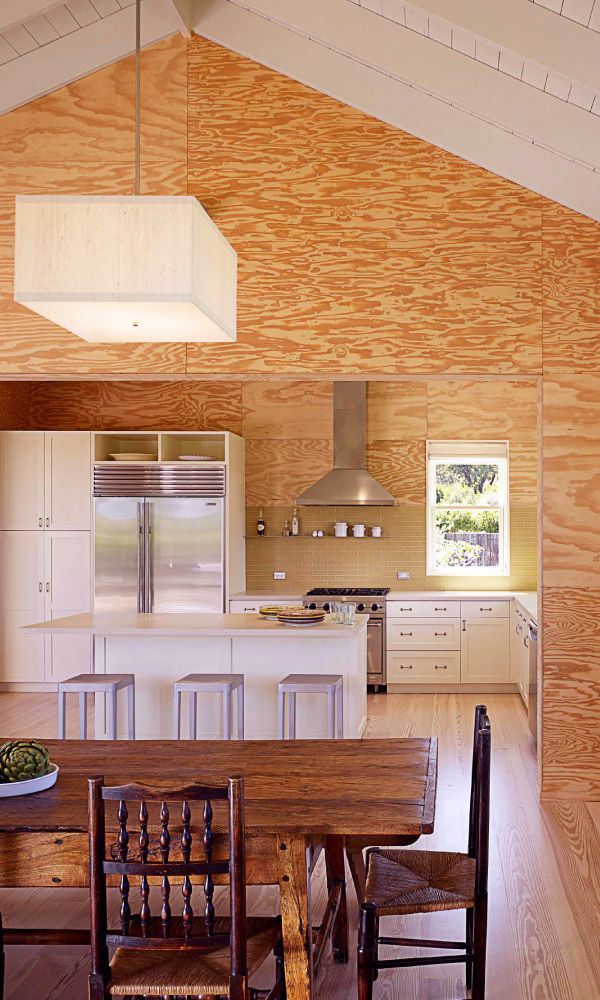

Internal Wall Cladding
Ceiling Panels

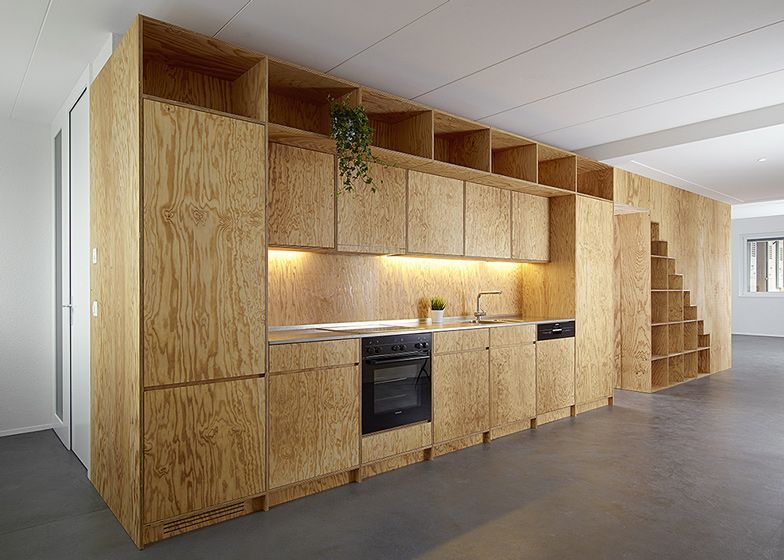

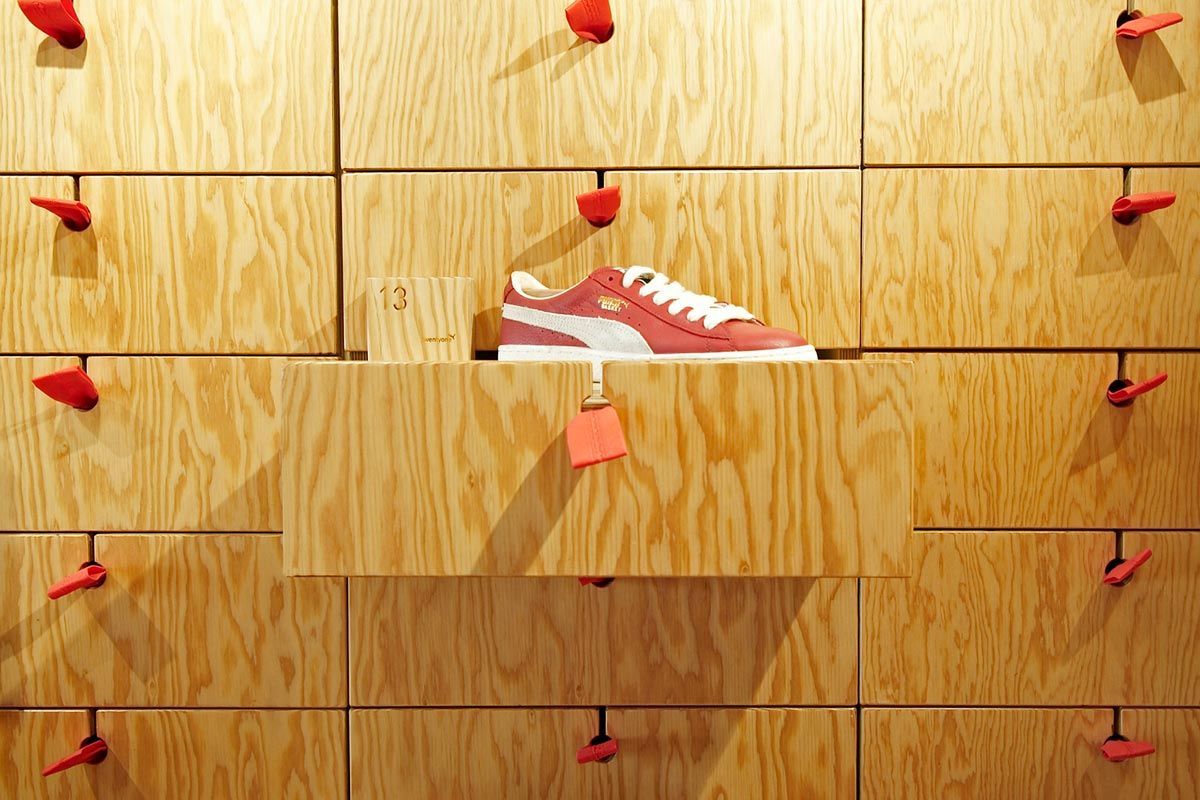

Joinery & Shopfitting

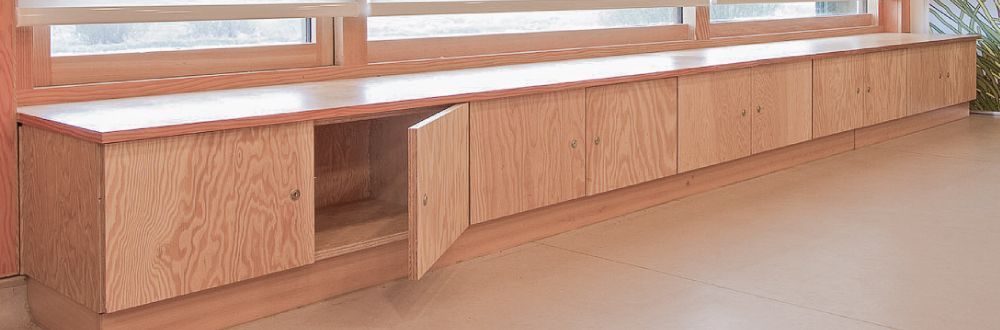

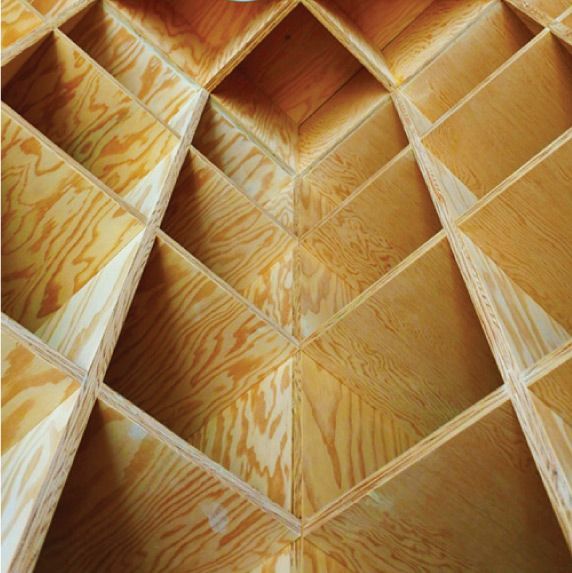

Furniture
We deliver throughout the UK
Request a Quote
Specifications
Case Studies
Fire Rated
Ask us about Fire Rated Douglas Fir Plywood to Euroclass B s1,d0
Our other decorative panels...
Compare Decorative Pine to Douglas Fir

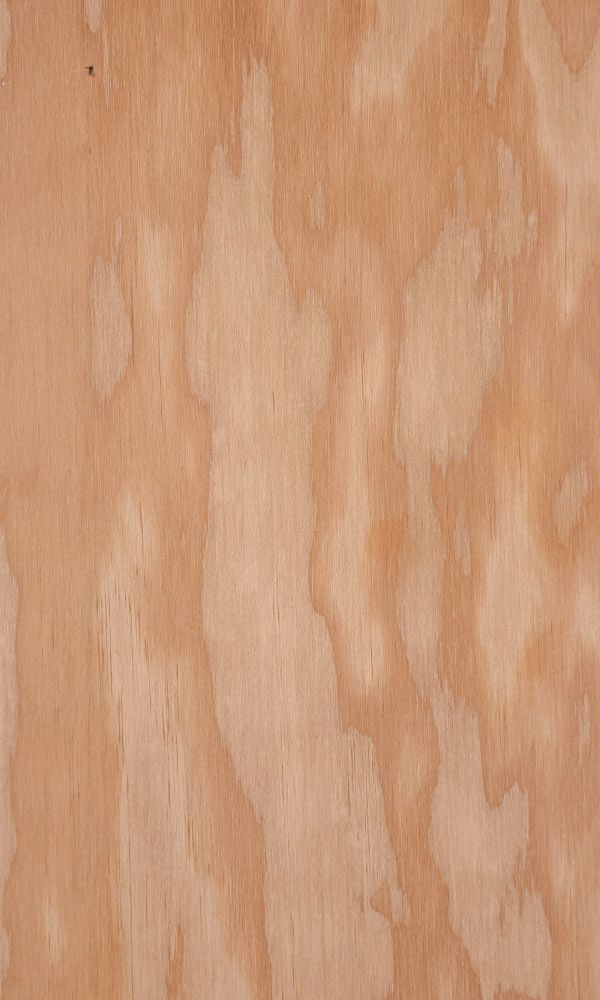

Douglas Fir has a wild grained, rotary cut, one piece face veneer which is very much in fashion. An attractive panel for visually striking interior walls and ceiling panels. The decorative faces set Douglas Fir apart and this speciality panel is seeing a surge in popularity with designers & architects.
Thickness
11mm - 1/2 inch (half inch) 5 ply construction

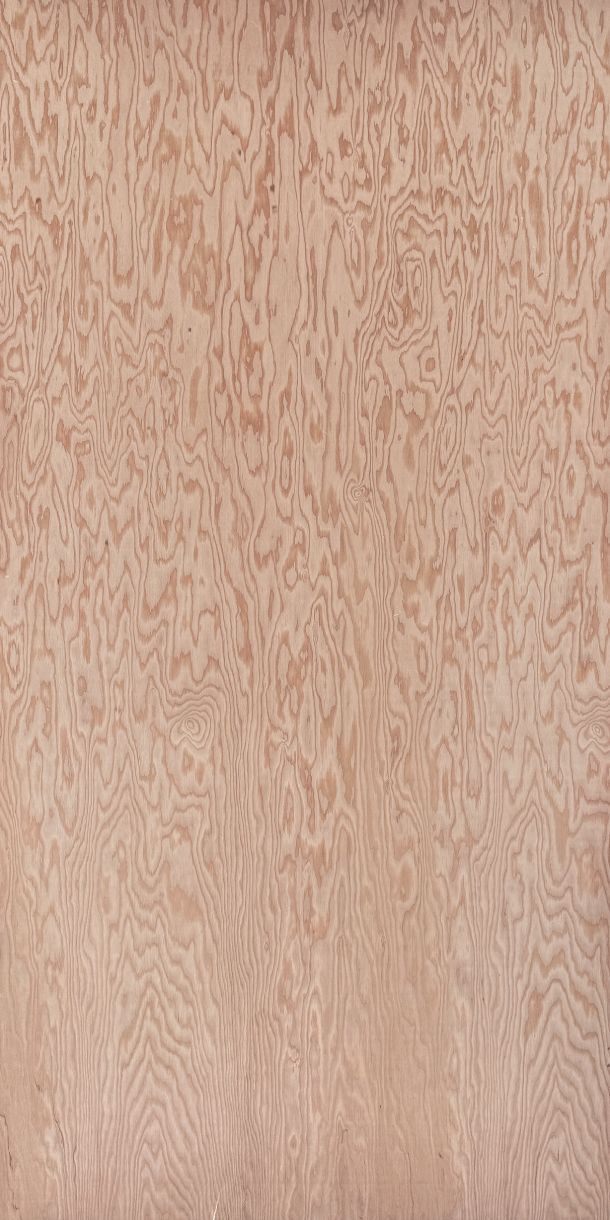

19mm - 3/4 inch (three quarter inch) 7 ply construction
24mm - 1 inch, 9 ply construction (good two sides only)
Faces

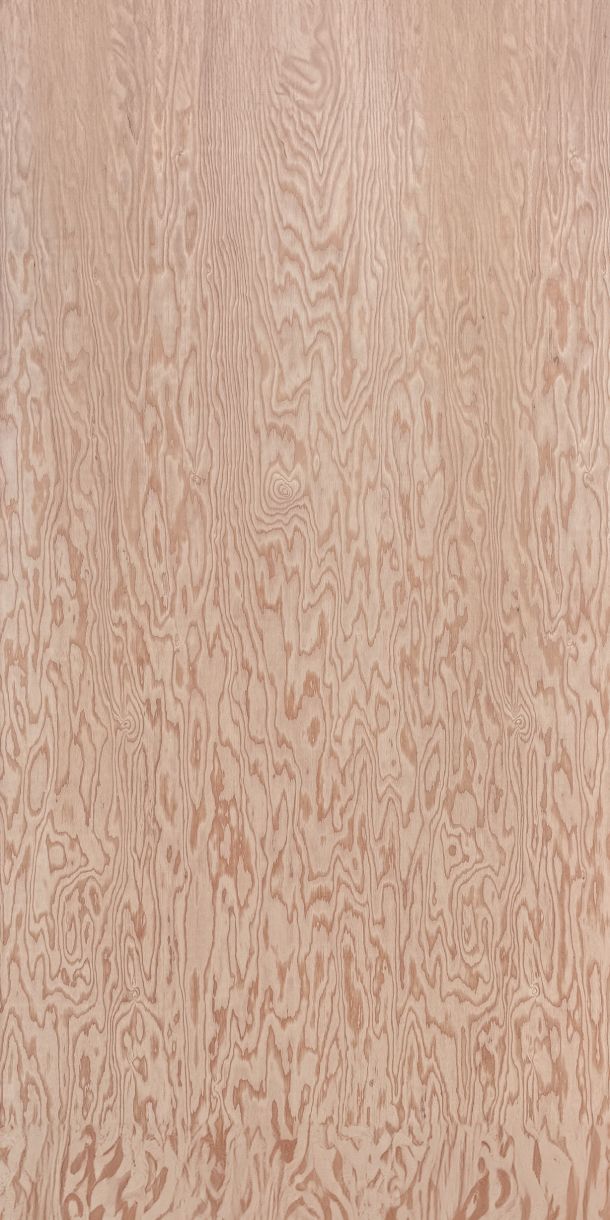

Good One Side (GOS or G1S)
Grade A/C (front face grade A / reverse grade C)
Good face repaired with wooden plugs and epoxy/wooden putty
Good Two Sides: GTS - G2S
A/A (front and reverse faces grade A)
Both faces repaired with wooden plugs and epoxy/wooden putty
Good Face Definition
One piece face veneer, occasional hairline splits filled with wood putty, wood patches used to repair knots. Small pin knots allowed. Sanded faces.
Weight
540kg per M3*
11mm 2440 x 1220 weighs 17.7kg
19mm 2440 x 1220 weighs 30.5kg
24mm 2440 x 1220 weighs 38.4kg
*approximate and subject to natural variation
Panel Size
2440 x 1220 (8ft x 4ft) Long-grain
Bonding
EN314-2 class 3 exterior conditions
Bonded with waterproof phenolic resin which exceeds requirements of EN314-2 for Class 3: non covered exterior (replaces WBP specification)

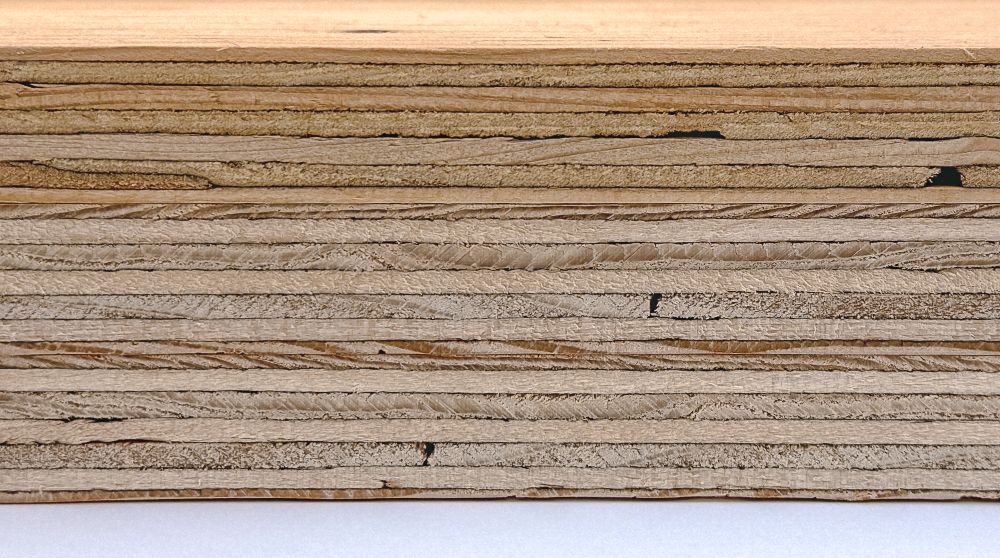

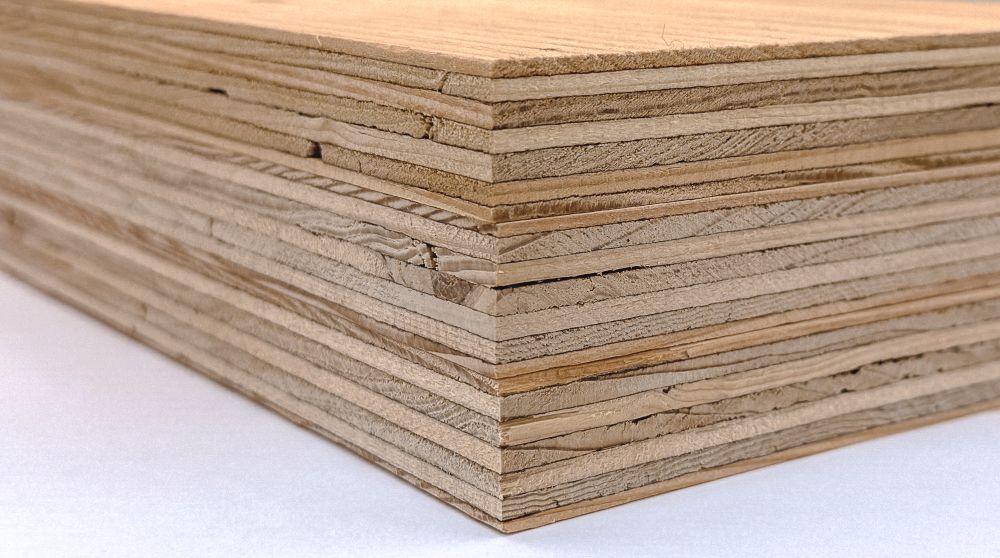

Core Construction
Douglas Fir throughout
Improved Core
Higher core quality, reduced defects - small voids permitted
Certification
CE Structural Rated
PEFC environmentally certified
EN 13896 - Formaldehyde class E1
CPD Compliant (Construction Products Directive) 1224-CPD-0002
Datasheet

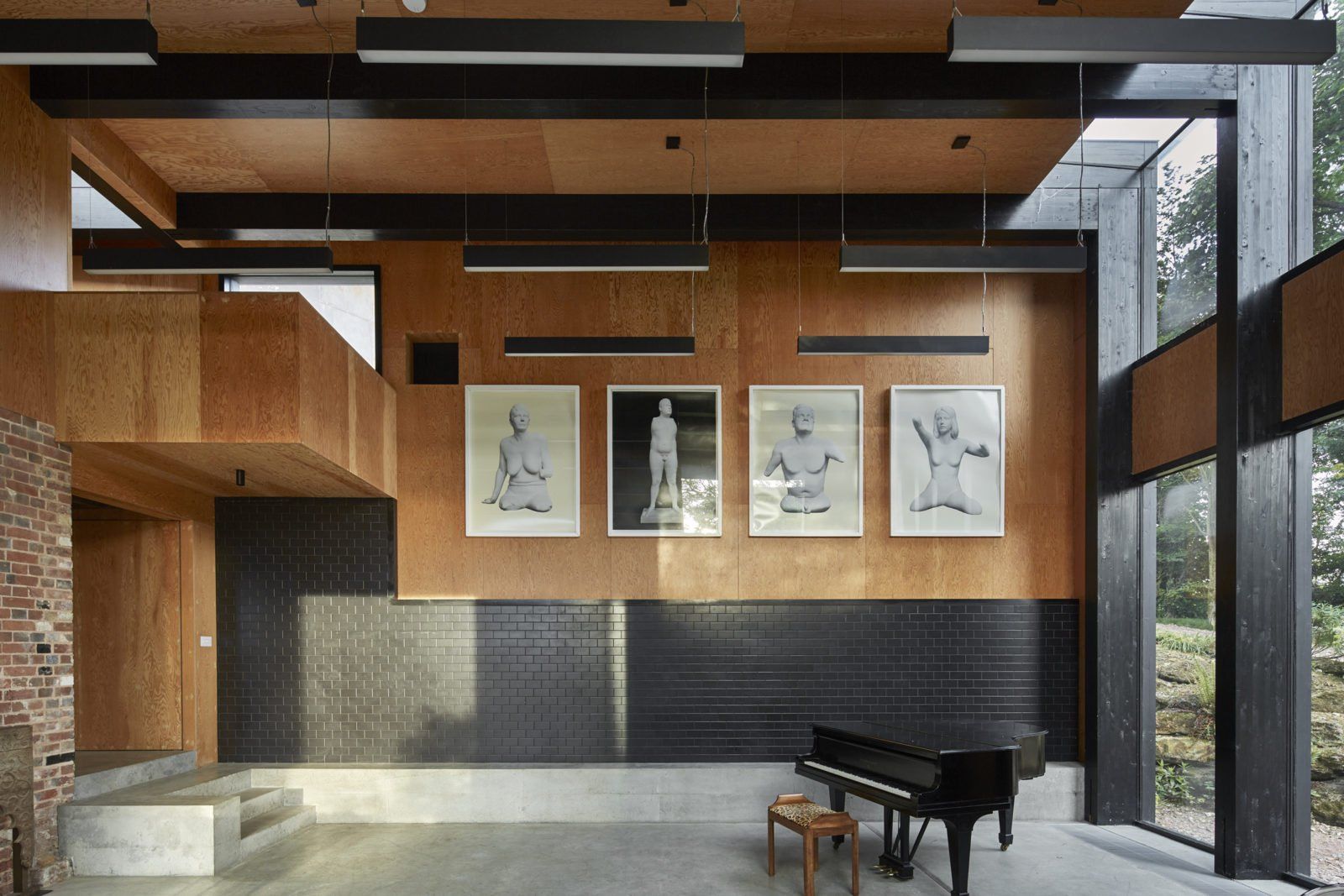

Jack Windmill
Malin & Goetz

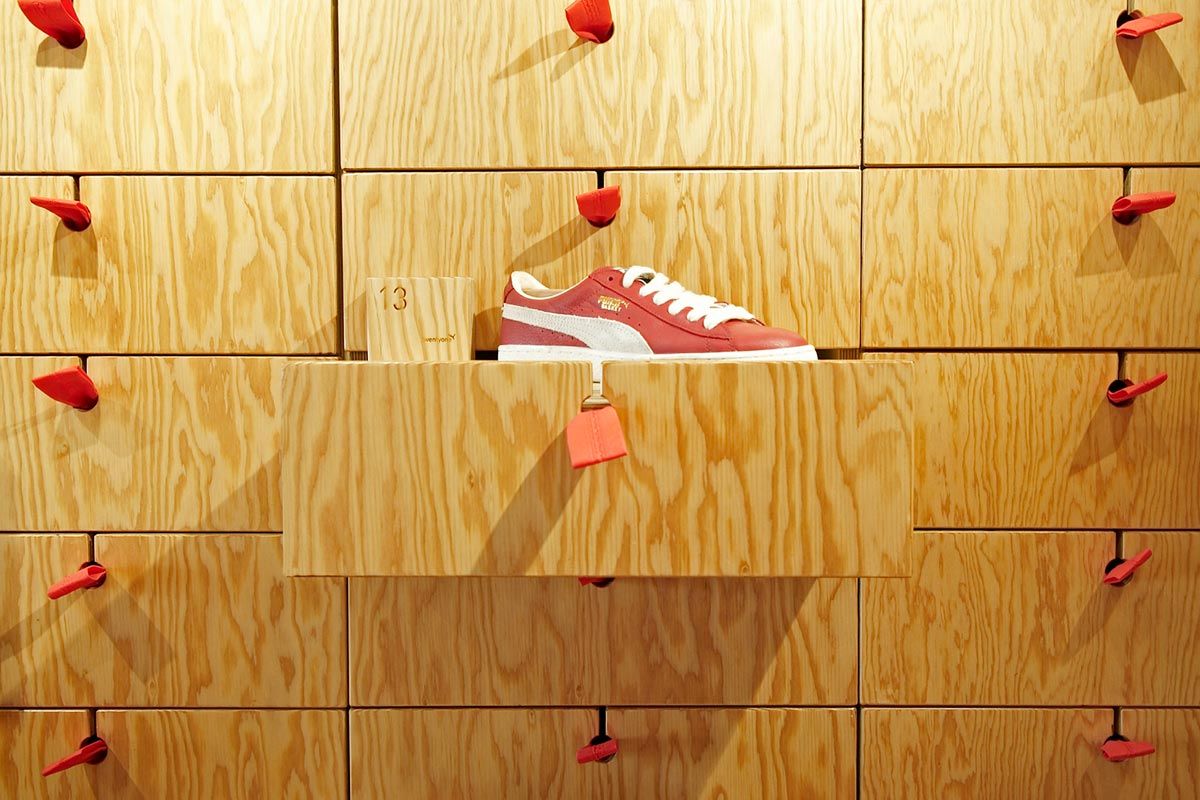

Puma Boxpark

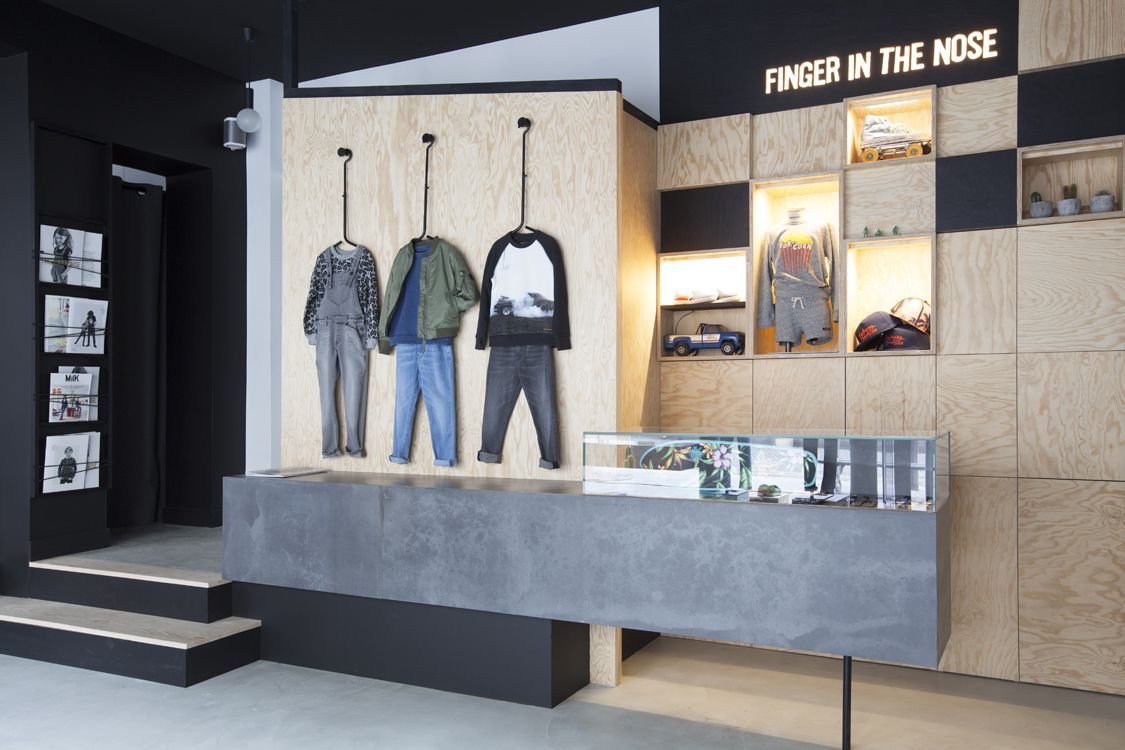

Finger In The Nose

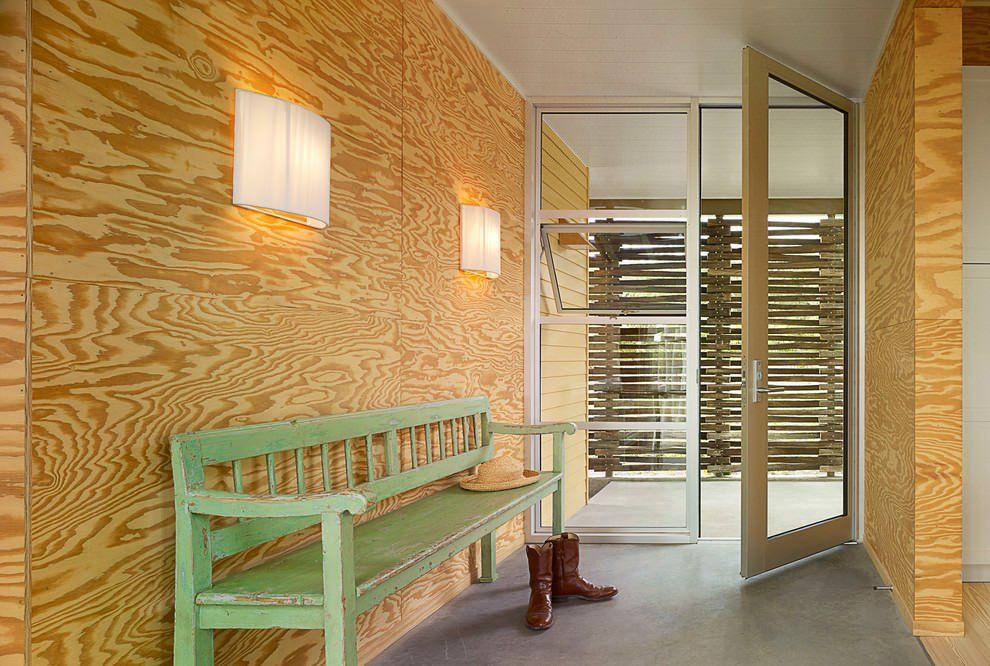

Feature Walls
Retail Spaces
